Musician MK3

Description

Introduction of musician’s former MK3:

From the picture, we can see that the rightmost part of the back panel of the chassis is the input of 110-240v mains power, and then the front-stage output, input and other interfaces.

The internal PCB planning is reasonably divided, with the input area on the left and the output area on the right.

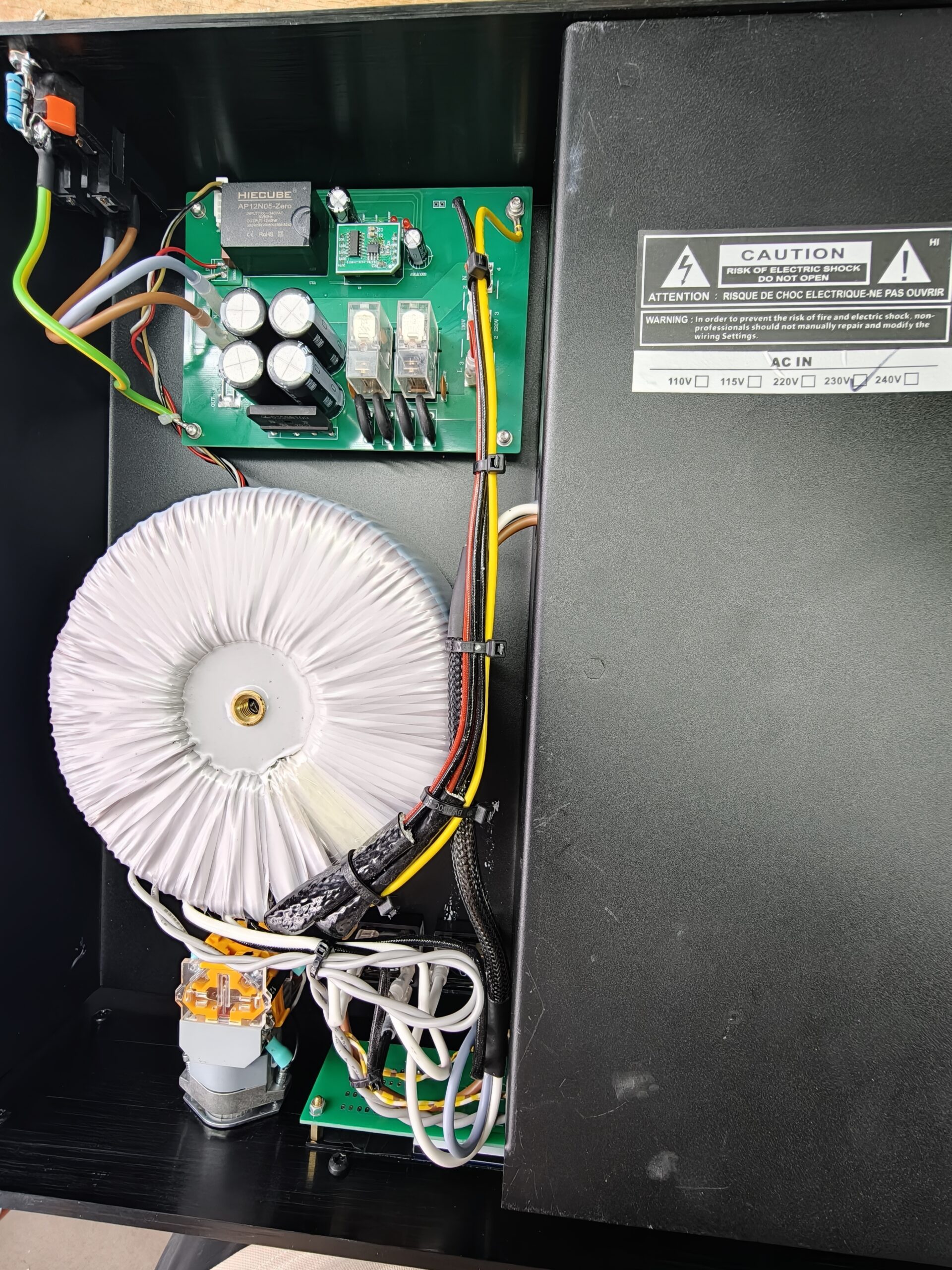

High and low voltage voltage exchange adopts two transformers, one 8w sealed transformer to supply power for the digital part of the whole machine (potentiometer single chip microcomputer, front-stage output protection, gain control, mute, remote switch on and off, volume level), and the other ring transformer to stabilize the voltage for two super parallel circuits.

The materials of each power supply are also very elegant, and all the resistors are Philips, and many parallel connections are used at high current. Control the temperature within the normal range. The power adjustment tube adopts four Toshiba medium power tubes in Japan, which can maximize the line performance. We pledge to create the sound of China audio brand with ingenuity, and present our most sincere works for China audio industry.

This is a high-quality sound quality control (perfect combination of sound quality and quality) preamplifier, with the ultimate goal of pursuing first-class sound reproduction. Compared with the previous version and has obvious differences, the sound is extreme and the background is quieter. From the layout of the internal circuit frame, it has been obviously optimized by itself.

PCB wiring has also made a lot of improvements to perfectly repair the shortcomings of the first generation. A good machine is not only to see whether its appearance is gorgeous and eye-catching, but also to pay attention to the internal design and materials. At the same price, the materials used are already better than many imported brands.

The introduction of musician’s dichotomy MK3;

This is a truly independent post-amplifier. In order to better match the front-end equipment, we have made two sets of inputs in the post-input interface, RCA/XLR for you to listen to different sound performances. In the last stage of music, 8 specially customized transistors and 4 customized capacitors are used as the power supply of the whole machine to store and filter out foreign waves, and 8 Jin Feng transistors are used as the voltage input stage of the whole machine. The musician’s back stage outputs 270W8 ohm power per channel, which can drive many brand speakers.

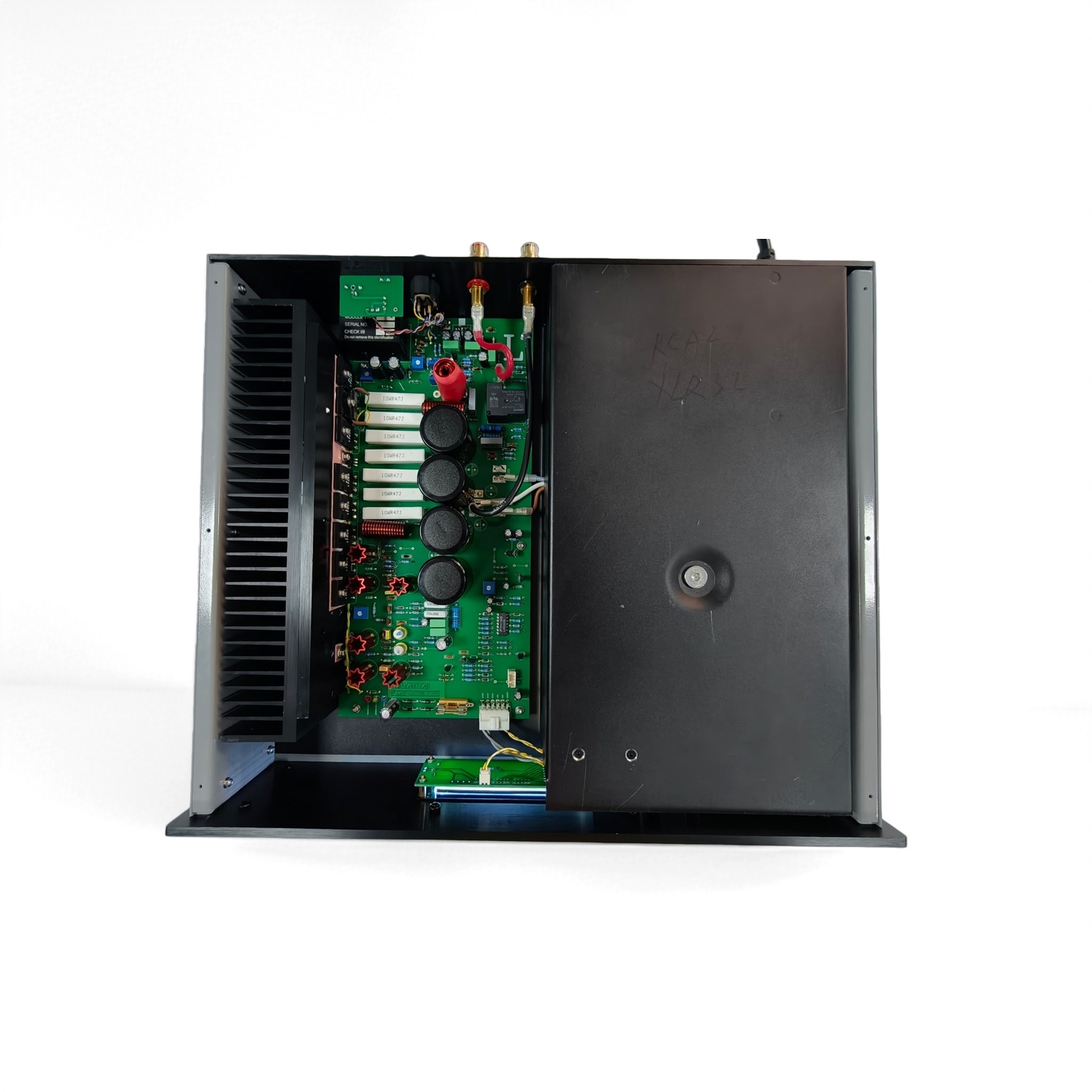

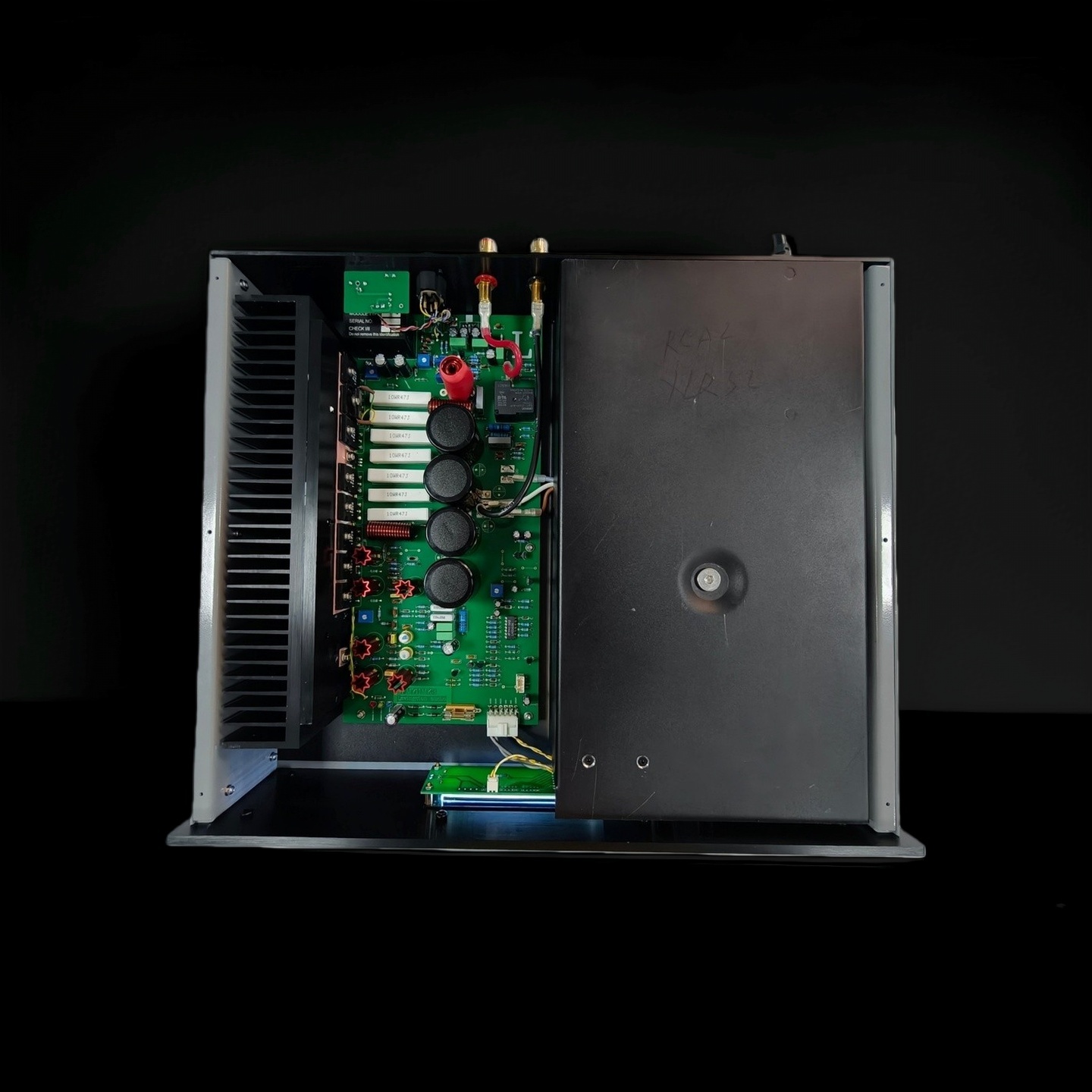

Chassis design: The internal design of the chassis divides the amplifier and power supply into two parts to minimize interference. Power supply processing adopts a 1000W transformer to supply power to the whole machine. 1000W power supply and 270W power output. The reserve capacity is substantial, and there is no need to worry about things that will be overwhelmed when there is a big dynamic.

We don’t want to be a cheap labor manufacturer, but we are determined to be a good voice of China. So please don’t compare the price of cheap machines with ours, and please don’t insult you and me. Let the sound quality speak for itself, and whether it is true by listening to your own ears or not.

There may be no big difference in appearance, but it will definitely be a world difference in listening, so please believe your ears.

Musician MK3′ s previous indicators are as follows:

1: gain/maximum input level/input impedance: 20DB/9V/67-100-150Keiomega

2: Maximum output level/recommended load impedance: 19.5V/600Omu

3: (phase line, stereo): balanced (XLR )×2, single-ended (RCA)X3.

4: with vinyl (stereo): single-ended (RCA)X1

5: output (stereo): balanced (XLR)X2 single-ended RCA X1

6: Power: 100V/240V AC, 50/60 Hz

7. Power consumption: all-in-one machine 12W,

Post-stage parameters of musician’s dichotomy MK3:

The effective output power is 270W×1(8ohms), 450W×1(4 ohms) and 650W×1(2 ohms).

● Gain/input sensitivity/input impedance: 32dB/1.6V/40k.omega.

● input (stereo): balanced (XLR) single-ended (RCA)

● Speaker terminal (stereo): 1 wire (advanced banana plug 65A banana only, supporting Y plug banana plug)

● Output gain (32 times)

● Power: 100 V-240V AC, 50/60 Hz.

● Power consumption: 30 W (idling)

● Size: 475 width× 100 h× 400 d mm

● Weight: 23kg (single unit)
