MINI 711MK2 – HI-END Power Amplifier (2026 Edition)

Description

Reminder: “Using PayPal to transfer funds will incur a 7% handling fee on the platform

MINI 711MK2 – HI-END Power Amplifier (2026 Edition)

Pure Power. Absolute Control. Musical Authority.

The MINI 711MK2 is a true HI-END balanced & single-ended audiophile power amplifier, designed for demanding music lovers who seek ultimate transparency, dynamics, and control.

Thanks to its separate-module architecture, the MINI 711MK2 delivers a clearly improved sense of separation, superior low-level detail, and an exceptionally quiet background.
The 2026 Edition introduces all-new modules, upgraded components, refined circuit optimization, and recalibrated parameters, resulting in noticeably higher sound density, richer tonality, and overall sonic performance that clearly surpasses previous versions.

Engineering Excellence

The MINI 711MK2 operates on a ±DC 65V high-voltage power supply and delivers a powerful 180W into 8Ω.

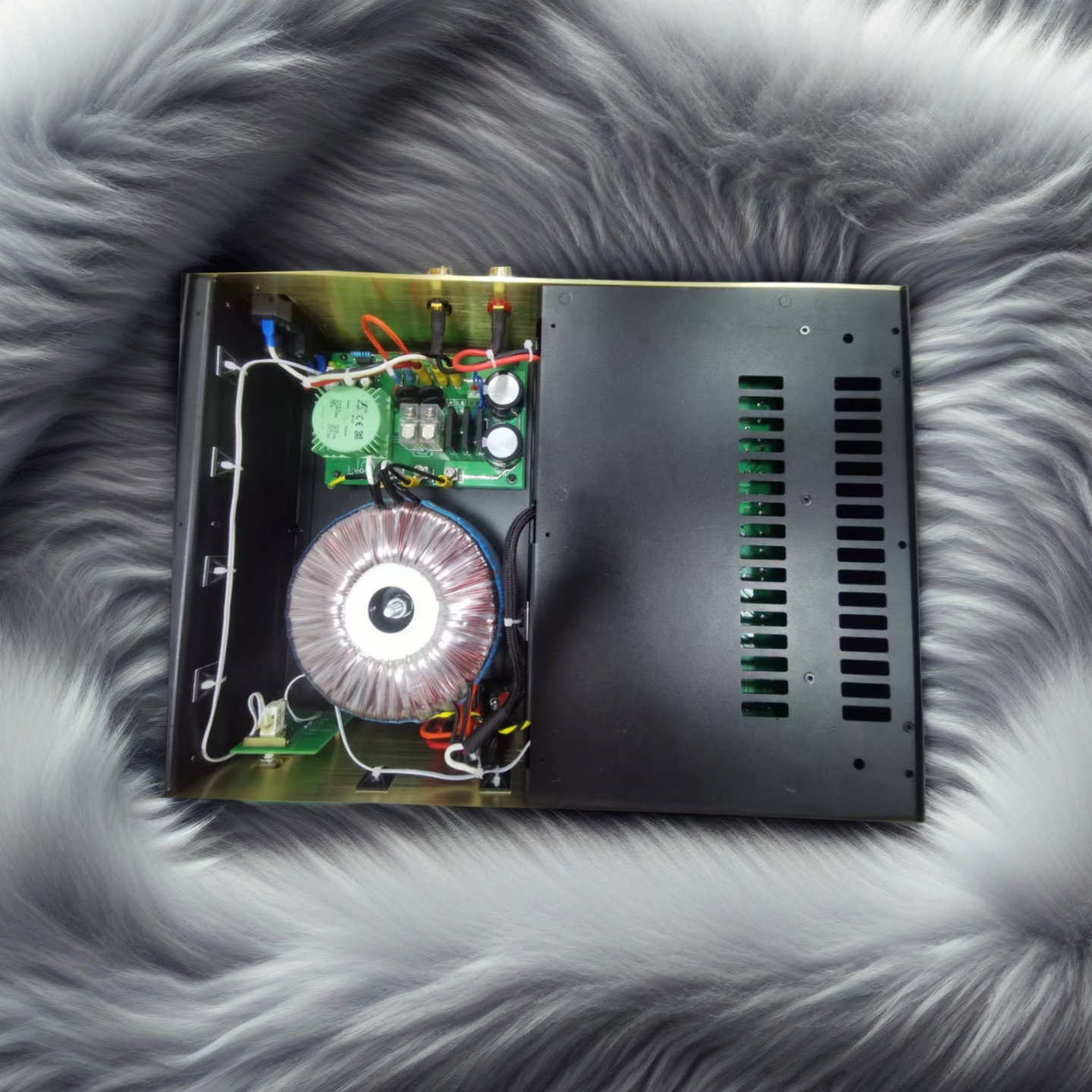

Each channel is equipped with its own high-quality 800VA audiophile-grade transformer, ensuring massive current delivery and rock-solid stability.

Note: The amplifier is shipped without signal cables and power cables. Buyers should prepare their own.

Premium Components – Built Without Compromise

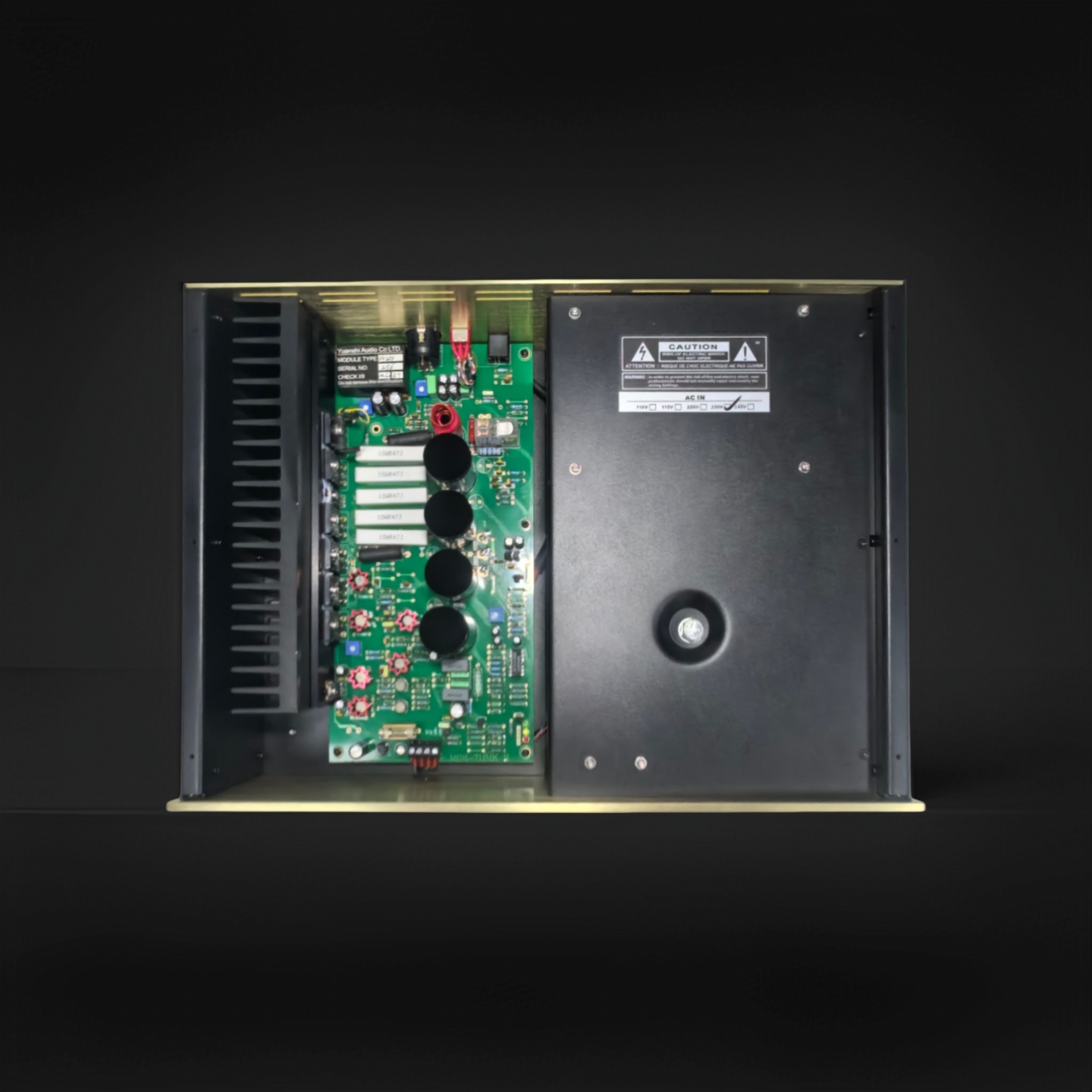

• 6 high-power audio transistors per channel
  Each rated at 20A / 150W, providing a combined 120A current capabilityand 900W total power reserve
  → Enormous headroom, explosive dynamics, and effortless control over demanding loudspeakers
• Resistors:Philips (same reference models)
• Capacitors:German ERO brand
• Electrolytic capacitors:Dedicated LS & PW series
• Transistors:Original vintage Motorola (MOTO) devices

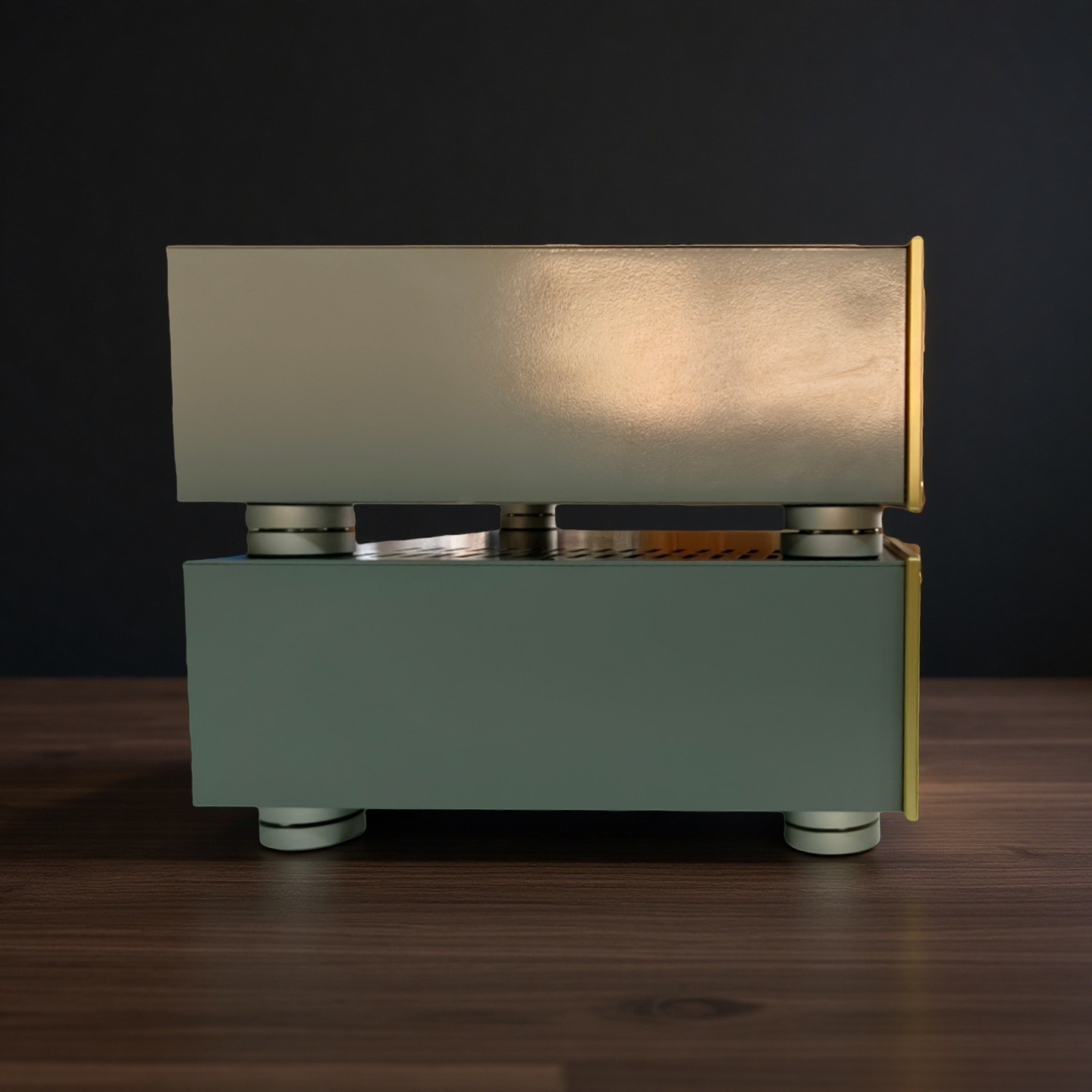

Chassis & Mechanical Design

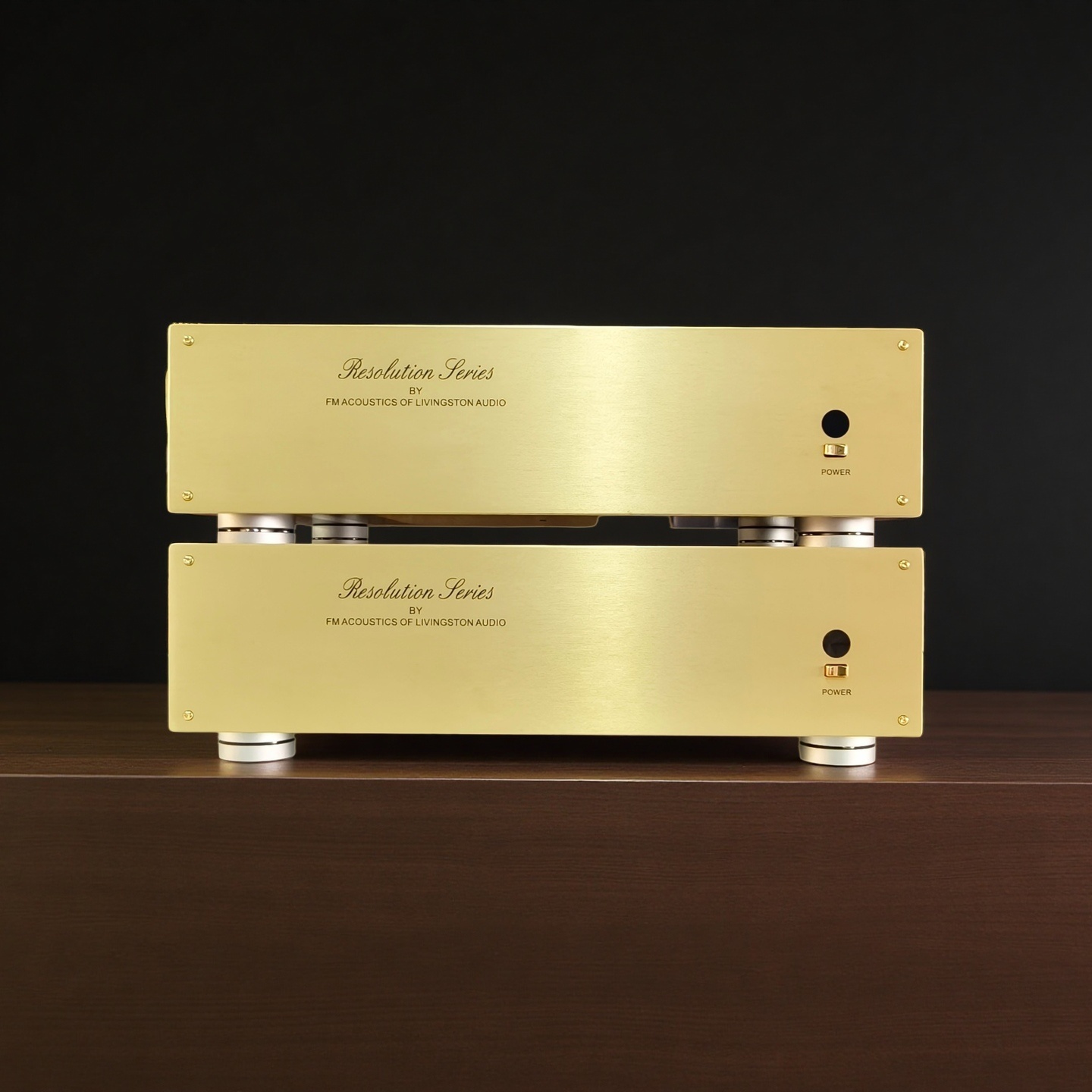

• Dimensions:
  445mm (W) × 100mm (H) × 305mm (D)
  6mm thick aluminum front panel
  Identical width and height as the 266MK2 preamplifier and matching 255-series width
• Construction:
  Top and bottom covers made of 2mm thick panels
  Internal dual-layer structural designfor enhanced rigidity and vibration control
• Cooling:
  Each channel features a one-piece aerospace-grade aluminum heatsink
  (85mm height × 40mm thickness × 250mm length) for efficient thermal stability

Circuit Philosophy – Designed for Sound Purity

Like all SOURCE POETRY (源詩) models, the MINI 711MK2 is engineered to minimize signal loss and timing errors to the absolute limit when amplifying micro-level signals.

To achieve uncompressed dynamics, ultra-low distortion, and consistent sound quality at both low and high volumes, only a truly superior circuit design will suffice.

Key Design Highlights

• Fully balanced architecture
• Three-stage push-pull amplification
• No current feedback
• Pure Class-A amplification from input to output
• Reinforced enhanced Class-A output stage

The result:
👉 Natural dynamics, zero strain, ultra-low coloration, and uncompromised musical realism

Technical Specifications (Per Mono Block)

• Output Power:
  180W @ 8Ω
  • 300W+ @ 4Ω
  • 500W @ 2Ω
• Signal-to-Noise Ratio:110dB+
• Input Gain:
  Balanced (XLR): 30dB
  • Single-ended (RCA): 27dB
• Input Sensitivity:2V
• Input Impedance:47kΩ

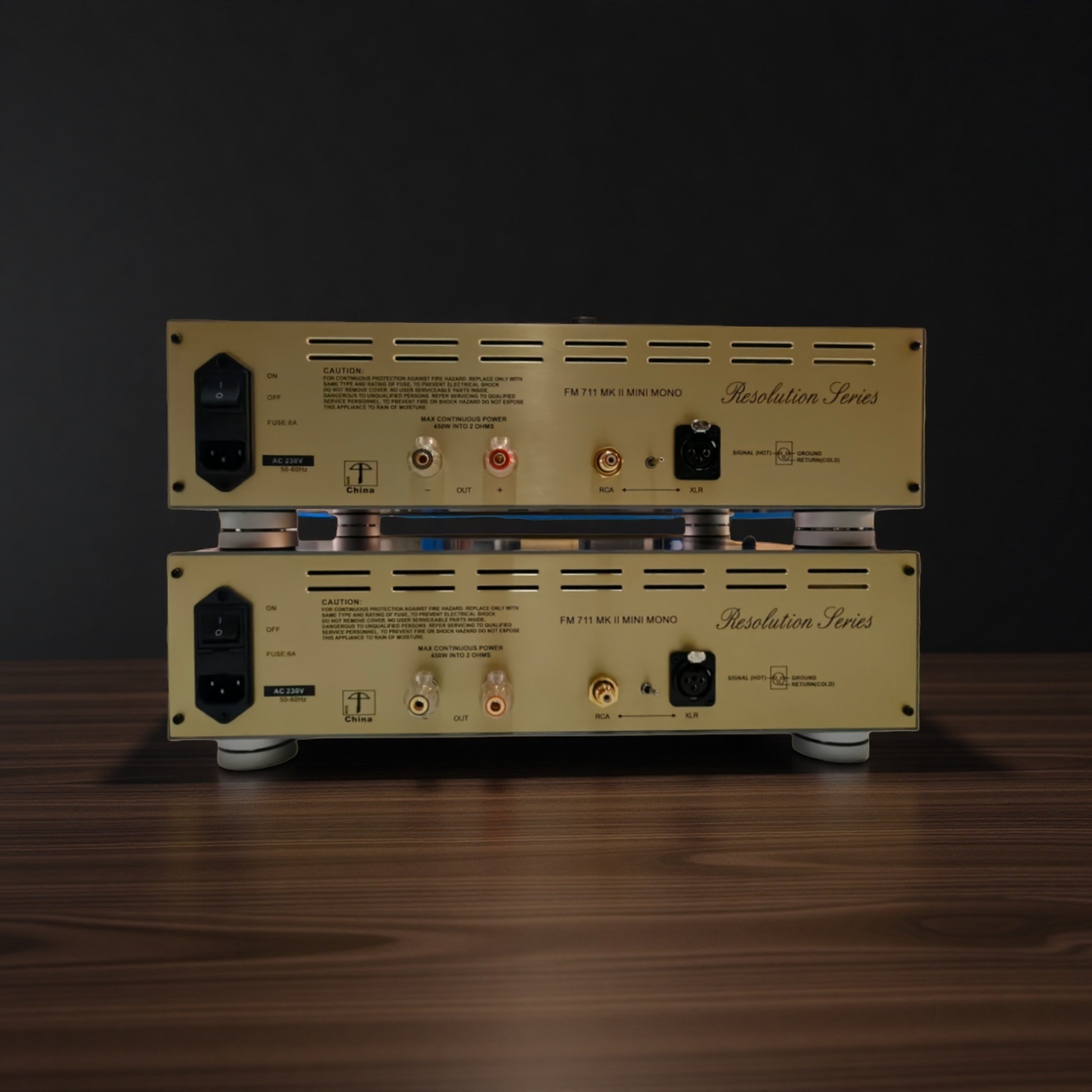

• Inputs:
  2 × Balanced (XLR)
  • 2 × Single-ended (RCA)
• Maximum Output Voltage:140Vp-p
• Total Harmonic Distortion:005% THD
• Frequency Response:<1Hz – 60kHz (±3dB)
• Power Consumption:
  Standby: 32W
  • 30% Output: 360W
  • Maximum: 800W
• Dimensions:445 × 100 × 305 mm
• Weight:22kg         a weight of one

MINI 711MK2 – Built for True Audiophiles

The MINI 711MK2 is not just about power numbers—it is about authority, refinement, and emotional connection to music.
From delicate micro-details to explosive transients, it delivers absolute control, effortless dynamics, and a pure, natural musical presentation.

A true HI-END power amplifier—designed to drive your loudspeakers with confidence and bring your music to life.

The price is for one set of two units,”Price includes worldwide shipping, delivered right to your door.”
